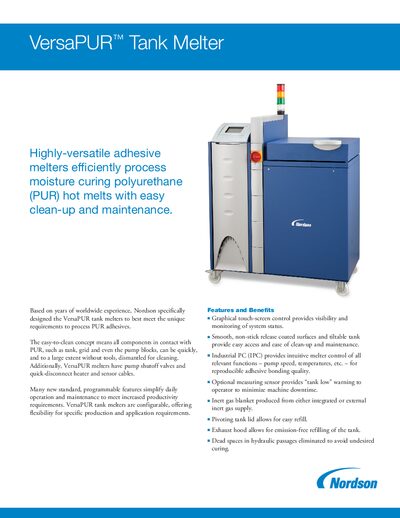

The Nordson VersaPUR PAL-13-5828 tank melter processes PUR adhesives with a touch‑screen, non‑stick surfaces, and configurable options.
The VersaPUR™ Tank Melter is designed for processing polyurethane (PUR) adhesives with easy‑clean, non‑stick surfaces and a graphical touch‑screen for monitoring. Features such as an industrial PC, optional sensors, inert gas blanket, pivoting lid, and exhaust hood provide flexibility and safety for various production needs.
Technical specifications include a positive‑displacement spur gear pump, multiple electrical service options, a 291 mm tank opening, temperature ranges from 10 °C to 230 °C, IP54 protection, and configurable pump and hose options. Communication interfaces such as Profibus‑DP, ControlNet, Ethernet/IP, and ProfiNet are supported.
| Type of System | Positive‑displacement spur gear pump |
|---|---|
| Electrical Service | 200 VAC 3‑phase 50/60 Hz |
| Tank Opening Diameter | 291 mm (11.46 in.) |
| Ambient Temperature | 10 °C to 40 °C (50 °F to 104 °F) |
| Operating Temperature | 40 °C to 230 °C (104 °F to 446 °F) |
| Approx. Weight | 280 kg (617 lb) |
| Hose/Gun Pairs | 2, 4 or 6 (4, 8 or 12 external channels) |
| Thermostat Options | 150 °C, 180 °C, or 200 °C |
| Host Communication | Profibus‑DP, ControlNet, Ethernet/IP, ProfiNet |
It uses a positive‑displacement spur gear pump.
