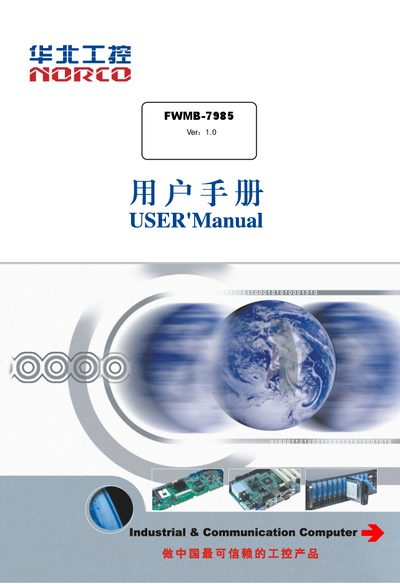

This manual provides installation, interface description, and BIOS setup instructions for the NORCO FWMB-7985 motherboard based on Hygon processors.
The NORCO FWMB-7985 is a motherboard designed for industrial applications such as multi-port serial communication, automation control, POS terminals, and multi-display systems. It features support for Hygon 3100/3200 CPU processors and up to 4 DDR4 memory slots with a maximum capacity of 512GB.
The document details hardware specifications including six TTL/RS232 serial ports, four USB 2.0 interfaces, various PCIe expansion slots (one x16 and four x8), SATA storage options, and a MiniPCIe slot for 3G/4G connectivity. It also covers jumpers configuration, interface pinouts, and the AMI BIOS setup utility. This manual is written in Chinese.
It is designed to connect graphics debugging devices and meets the needs of most professional customers in multi-port, industrial automation, POS terminal, and multi-display industries.
The board supports a maximum total content capacity of 512G.
You should wait at least 30 seconds after shutting down before powering on again to avoid unnecessary damage.
