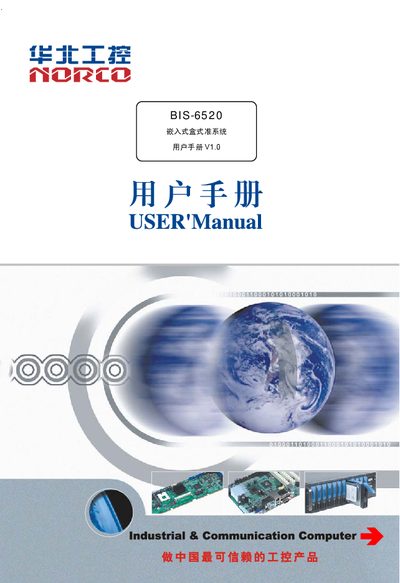

The manual provides an overview, installation, configuration, driver setup and warranty information for the fanless NORCO BIS-6520 embedded box computer.
The NORCO BIS-6520 is a fanless, compact embedded box computer designed for industrial environments. It is based on an Intel 915GM+ICH6M chipset and supports Celeron and Pentium mobile processors, up to 2 GB DDRII memory, and offers multiple I/O options including VGA, DVI, Ethernet, USB and serial ports.
This user manual covers product introduction, hardware installation and removal, system configuration, driver installation (including AC'97 sound driver), and detailed warranty and service terms. It also provides safety notices and contact information for technical support. This manual is written in Chinese.
| Design | Fanless |
|---|---|
| Supported CPUs | Celeron and Pentium mobile processors |
| Memory | 2 DDRII SO‑DIMM slots, up to 2 GB, 533/400 MHz |
| Storage | 1×2.5" IDE/SATA HDD bay, 1× CompactFlash slot |
| Display Interfaces | VGA and DVI |
| Ethernet | 2× Realtek 8100C/8110S (10/100/1000) selectable |
| USB Ports | 4× USB 2.0 |
| Serial Ports | COM1 RS‑232, COM2 RS‑232/422/485 selectable |
| Operating Temperature | -10 °C to 60 °C |
| Dimensions (W×H×D) | 245 mm × 194 mm × 50 mm |
It can operate from –10 °C up to 60 °C.
The system provides four USB 2.0 ports.
NORCO provides a three‑year limited warranty with specific terms for components, accessories and the main unit.
Insert the driver CD, navigate to \drivers\Audio\AC97, run SETUP.EXE, and restart the computer after installation.
