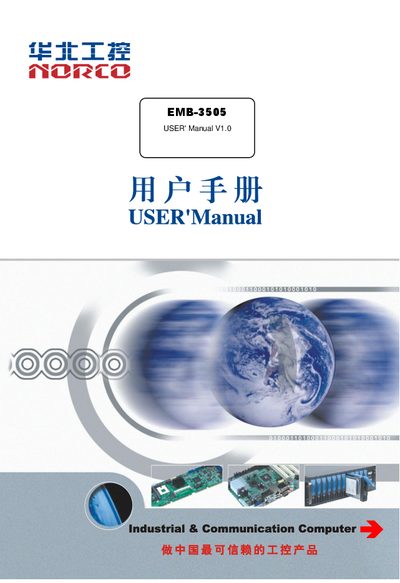

User manual for the Norco EMB-3505 V1.0 embedded motherboard, covering hardware specs, interfaces, installation and software features.
The Norco EMB-3505 V1.0 is an i.MX6‑based embedded motherboard. It provides a 1 GB DDR3 memory, multiple I/O interfaces such as LVDS, Ethernet, USB, CAN, and a Mini‑PCIe slot for optional Wi‑Fi, 3G or mSATA modules.
The manual includes product introduction, detailed hardware specifications, interface layout, installation steps, jumper settings, and software support for both Android and Linux. Safety and handling instructions are also provided to protect the board and the user during installation and operation. This manual is written in Chinese.
| CPU | i.MX6Q/DL/S |
|---|---|
| Memory | 1 GB DDR3 800 MHz (default) |
| LVDS Display | 1 dual‑channel 2.0 mm pin, 24‑bit 1920×1080@60 Hz |
| Ethernet | RJ45 10/100/1000 Mbps |
| USB Ports | 5 USB 2.0 (3 standard, 2 1×5 pin) |
| CAN Interfaces | 2 CAN ports |
| Mini PCIe | 1 slot (supports Wi‑Fi, 3G, mSATA) |
| Power Supply | +12 V single supply |
| Operating Temperature | -20 °C to +70 °C |
It requires a single +12 V power supply.
The board provides five USB 2.0 ports – three standard ports and two 1×5‑pin connectors.
The board operates from –20 °C up to +70 °C.
