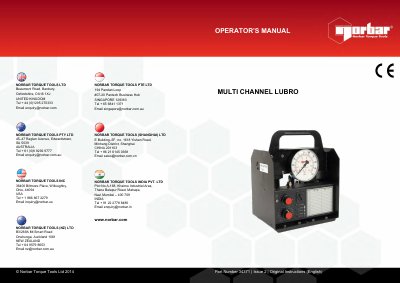

This manual provides instructions for the setup, operation, maintenance, and troubleshooting of the Norbar MCL Multi Channel Lubro device for pneumatic tools.
The Norbar Multi Channel Lubro (MCL) is a device designed to instantly change between different air pressure settings for pneumatic stall tools. It allows users to store up to 15 different pressure settings corresponding to specific torque values, ensuring instant operator setting. The unit features a robust metal carry crate, key-controlled setup to prevent inadvertent programming, and an internal rechargeable battery pack for remote working up to 16 hours. Additionally, it provides controlled oil feed for the lubrication of connected tools.
| Output pressure range | 7.25 psi / 0.5 bar to 95 psi / 6.5 bar |
|---|---|
| Input pressure limit | 145 psi / 10 bar |
| Battery runtime | 16 hours |
| Pressure settings storage | 15 |
| Included hose length | 3m |
It can take up to 4 hours to fully charge the battery.
At least 15 psi / 1 bar is required for most tools.
Up to 15 different pressure settings can be stored.
