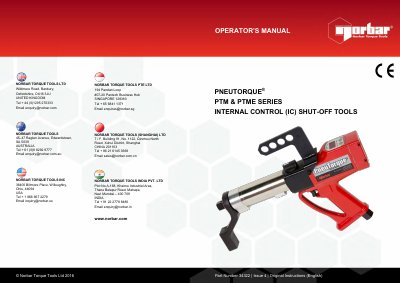

This manual provides setup, operation, and maintenance instructions for Norbar PneuTorque PTM and PTME series internal control pneumatic torque tools.
The PneuTorque® PTM & PTME Internal Control (IC) tools are air-driven power tools designed for applying torque to threaded fasteners. They feature a target torque or angle setting that shuts off the air supply when the target is reached, ensuring accurate and repeatable results. Available models cover torque capacities from 500 N·m to 2000 N·m.
| Torque Capacity Range | 500 N·m to 2000 N·m |
|---|---|
| Minimum Air Flow | 19 litres/sec (40 CFM) |
| Lubrication Requirement | 6 drops of oil per minute |
| Drive Square Sizes | 3/4" and 1" |
The tool must be used with oil lubrication in the supplied air, achieved by using a Lubro Control Unit set to supply 6 drops of oil per minute.
Yes, the tools can tighten and release both clockwise and counter-clockwise threaded fasteners.
The reaction bar ensures all reaction forces are contained so that torque reaction is not passed back to the operator.
