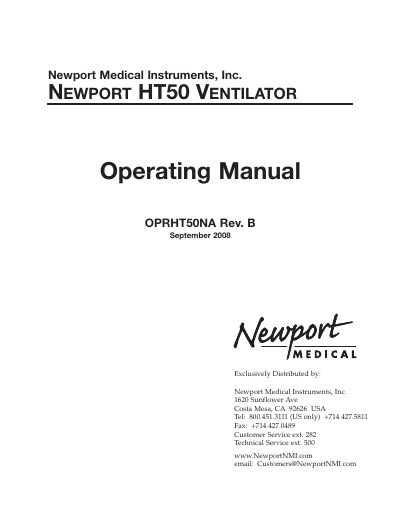

Operating manual for the Newport HT50 ventilator covering setup, operation, maintenance, and safety.
The Newport HT50 Ventilator Operating Manual provides detailed instructions for safe and effective use of the HT50. It includes operator responsibilities, specifications, control descriptions, theory of operation, ventilation setup, cleaning, maintenance, and troubleshooting.
The manual also contains quick‑check procedures, accessory lists, and a help guide to assist trained medical personnel in both clinical and home‑care environments.
| Tidal Volume (Volume Control) | 100 to 2,200 mL, ATPS, ±10 % |
|---|---|
| PEEP (Pressure Control) | +5 to 60 cmH₂O / mbar |
| Flow Rate | 6 to 100 L/min |
| Inspiratory Time | 0.1 to 3.0 sec |
| Respiratory Frequency | 1 to 99 breaths/min |
The primary internal battery should be replaced every 12 months or sooner if the use time no longer meets the needs of the user.
The HT50 is guaranteed to be free of defects for two years from the date of delivery.
