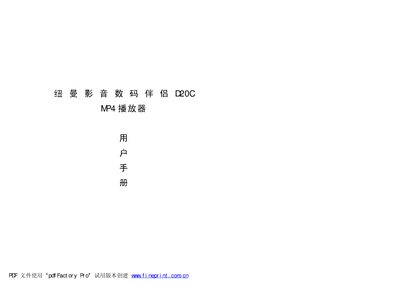

The manual explains features, operation, charging, file management and troubleshooting for the Newman D20C MP4 player.
The Newman D20C MP4 Player is a portable digital media companion with a 2.4‑inch TFT true‑color display, support for multiple audio, video and image formats, and a removable lithium‑ion battery.
This user manual provides step‑by‑step instructions for charging, power on/off, file management, playback controls, lock key, reset function, and troubleshooting, helping users operate the device safely and efficiently. This manual is written in Chinese.
| Dimensions | 120mm×77mm×25mm |
|---|---|
| Display | 2.4‑inch 1600万TFT true‑color LCD |
| Supported music formats | MP3, WMA |
| MP3 bitrate | 32Kbps–320Kbps |
| WMA bitrate | 32Kbps–192Kbps |
| Video format | XVID‑encoded AVI |
| Image formats | JPEG, BMP (24‑bit), GIF |
| Language menus | Simplified Chinese, BIG5 Chinese, English, German, Spanish, Thai |
| Lyrics format | LRC |
| Recording format | MP3 |
| Flash animation format | SWF |
| Storage capacity | 20 GB–200 GB |
| Headphone output power | L 5 mW + R 5 mW |
| Frequency response | 20 Hz–20 kHz |
| Signal‑to‑noise ratio | ≥90 dB |
| File system | FAT32 |
| USB interface | USB 2.0 |
Press the reset hole with a pen tip; the device will restart and resume normal operation.
