The Newman King M958 is a portable MP4 player with a 2.5-inch TFT color screen, movie playback capabilities, a 2-megapixel camera, extensive text recording, and support for SD/MMC cards.

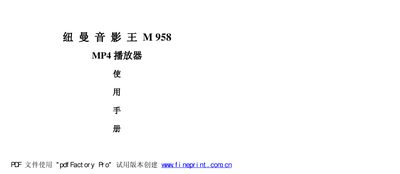

This manual introduces the Newman M958 MP4 player, covering its main features such as a 2.5‑inch TFT color screen, video playback, camera, and expandable SD card storage. It also explains safety precautions, button functions, and basic operations like charging, power on/off, and lock mode.
The later sections list detailed technical specifications, including dimensions, display details, supported audio/video formats, memory options, battery capacity, and environmental limits, helping users understand the device’s capabilities and proper usage. This manual is written in Chinese.
| Dimensions | 91mm x 61mm x 15mm |
|---|---|
| Display | 2.5‑inch 260,000‑color TFT LCD |
| MP3 bitrate | 32 kbps – 320 kbps |
| Video bitrate | 32 kbps – 160 kbps |
| Video format | ASF |
| Camera resolution | 2 MP (200万像素) GMC8 sensor |
| Image format | JPEG (JFEG in text) |
| Audio recording format | WMV |
| Audio sampling rate | 8 kHz |
| Text file format | TXT |
| Lyric file format | LPC |
| Internal memory | 256 MB, 512 MB or 1 GB Flash (as built) |
| Headphone output power | L 5 nW / R 5 mW |
| Frequency response | 20 Hz – 20 kHz |
| Signal‑to‑noise ratio | ≥85 dB |
| USB interface | USB 1.1 |
| Battery | Built‑in 960 mAh Li‑ion |
| Operating temperature | 0 °C – 40 °C |
Connect the charger to the power outlet and then to the player’s charging port; the red charging indicator stays on while charging and turns off when charging is complete.
The device supports SD (SD‑MDC) cards for expanding storage.
Slide the HQLD switch to the lock position; the player enters lock mode and a small lock icon appears on the screen.
