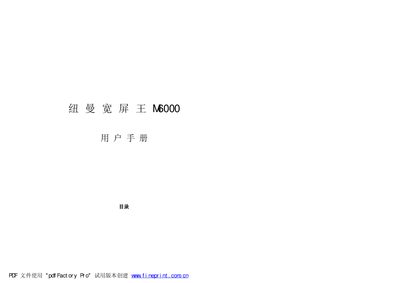

This document is the user manual for the Newman Wide Screen King M6000, which introduces the features, operation methods, application scenarios, and precautions of the product.
This manual explains how to use the Newman M6000 portable media player, covering everything from basic button functions to advanced features such as video playback, audio recording, and TV output. It also includes safety precautions, battery‑care tips, and troubleshooting steps.
Detailed sections describe charging procedures, file management via USB, firmware upgrades, and how to verify product authenticity. Technical specifications are listed at the end for quick reference. This manual is written in Chinese.
| Dimensions | 142 mm × 80 mm × 26 mm |
|---|---|
| Display | 4.3‑inch TFT, 16‑million colors |
| Video formats | MPEG‑1, MPEG‑2, MPEG‑4, DivX |
| Audio formats | MP3, WMA, OGG |
| Recording format | MP3 |
| TV output | AV cable to PAL/NTSC TV |
| MP3 bitrate | 32 kbps – 320 kbps |
| WMA bitrate | 16 kbps – 320 kbps |
| Image format | JPG (max 4800×3600) |
| Text format | TXT |
| Headphone output power | L 12 mW + R 12 mW (max) |
| Frequency response | 20 Hz – 20 kHz |
| Signal‑to‑noise ratio | 85 dB |
| Storage capacity | 40 GB – 160 GB HDD |
| Battery | Lithium 4200 mAh |
| USB interface | USB 2.0 |
Connect the charger to a power outlet and plug the DC charging connector on the device; the indicator lights while charging and turns off when fully charged.
Press the RESET key to restart the device; if the problem persists, recharge the battery and try again, or perform a firmware upgrade.
Use the supplied AV cable to connect the AV OUT port to a PAL or NTSC television and select TV mode in the menu.
