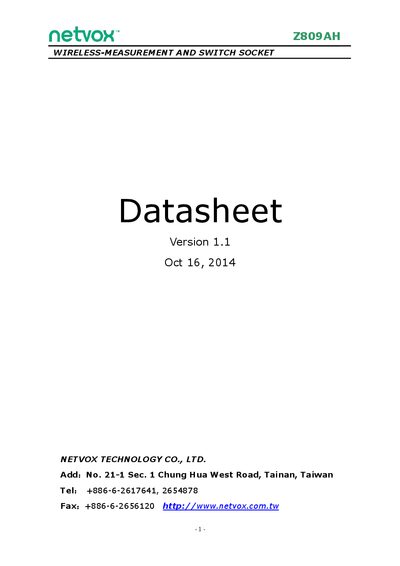

The Netvox Z809AH datasheet details a ZigBee‑compatible indoor smart socket with power measurement, switch control, and wireless communication specs.
The Z809AH is an indoor smart socket designed for home automation. It integrates a wireless module compliant with IEEE 802.15.4, allowing communication with ZigBee routers, coordinators and end devices for power‑usage monitoring and remote switching.
Key features include 2.4 GHz ISM‑band operation with 16 channels, up to 210 m line‑of‑sight range, built‑in energy storage, and transient current detection. Technical specifications cover electrical ratings, RF performance, and physical dimensions. This manual is written in Chinese.
| Rated Input Voltage | 100-240VAC, 50/60Hz |
|---|---|
| Rated Output Current | 16A |
| Typical Power Consumption | 0.5W/9.5mA/220VAC |
| Measurement Range | 100 mA – 16 A |
| Energy Metering Error | < ±1 % |
| RF Frequency Band | 2.4 – 2.4835 GHz |
| Communication Channels | 16 (ISM channels 11‑26) |
| Transmit Power | 7 dBm (max) |
| Receive Sensitivity | -101 dBm |
| Data Rate | 250 kbps |
| Dimensions | 95 mm × 56.2 mm × 34 mm |
It uses a chip module compliant with IEEE 802.15.4 and works with ZigBee networks.
The socket can communicate up to 210 meters in open line‑of‑sight conditions.
The relay is rated for 100,000 switching cycles.
It supports resistive loads up to 16 A at 250 VAC (4000 VA).
