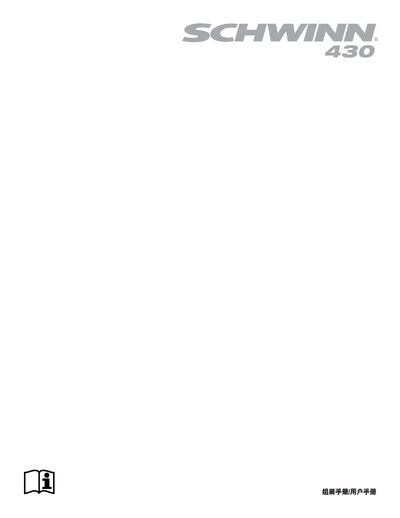

Assembly, safety, operation and maintenance guide for the Nautilus Schwinn 270/230/430/470/2.5 elliptical trainer.
This manual provides step‑by‑step assembly instructions, safety warnings, and required tools for the Nautilus Schwinn elliptical trainer models 270, 230, 430, 470 and 2.5. It also explains how to position the machine, level it, and connect power and data cables.
After assembly, the guide covers control‑panel functions, workout programs, quick‑start procedures, maintenance tasks, and troubleshooting tips such as fan issues, noisy components, and leveling adjustments.
| Maximum user weight | 136 kg (300 lb) |
|---|---|
| Maximum pedal height (incline) | 66.1 cm (26.0 in) |
| Machine weight | 74.5 kg (164.2 lb) |
| Footprint (occupied area) | 12 734.2 cm² (1 976.8 in²) |
| Power requirements | 220‑240 V AC, 50 Hz, 0.4 A |
| Recommended floor space | 193.4 cm × 300 cm (76.2" × 118.1") |
The machine is rated for a maximum user weight of 136 kg (300 lb).
Place the machine on a firm, flat surface and adjust the leveling feet until the unit is level, then verify the leveler position.
Check that the fan is not blocked, remove any debris, and if it still does not run, replace the fan assembly.
