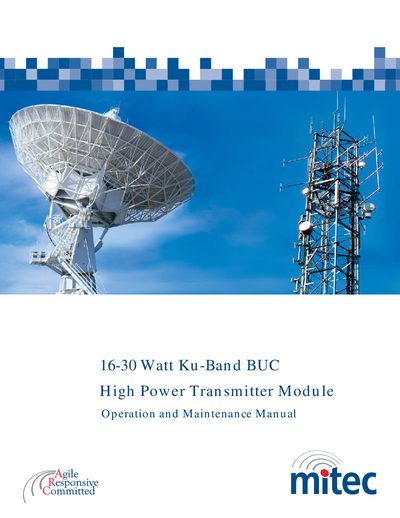

The manual provides installation, operation, and maintenance instructions for Mitec's 16‑30 W Ku‑Band BUC high‑power transmitter modules.
This document covers the complete lifecycle of the 16‑30 W Ku‑Band BUC high‑power transmitter modules, including safety precautions, receiving and inspection, mechanical installation, wiring, and functional overview. It is intended for engineers, technicians, and operators who install, commission, or service the modules in Ku‑Band VSAT applications.
Key sections include detailed specifications, mechanical drawings, connector pin‑outs, preventive maintenance procedures, troubleshooting guidance, and a spare‑parts ordering form. Appendices provide serial protocol details, interface information, and part numbers for quick reference.
| Output Frequency (Standard Ku‑Band) | 14.0 to 14.5 GHz |
|---|---|
| Output Frequency (Low Extended Ku‑Band) | 13.75 to 14.5 GHz |
| Small‑Signal Gain | 70 dB (min over temperature) |
| Saturated Output Power (30 W model) | 45 dBm (typ.) |
| Input Return Loss (cold) | -14 dB typ. |
| Output Return Loss | -16 dB max. |
The module must be handled with extreme care; excessive shock can damage delicate internal components, and it should be kept upright using the “This Side UP” labels during unpacking.
