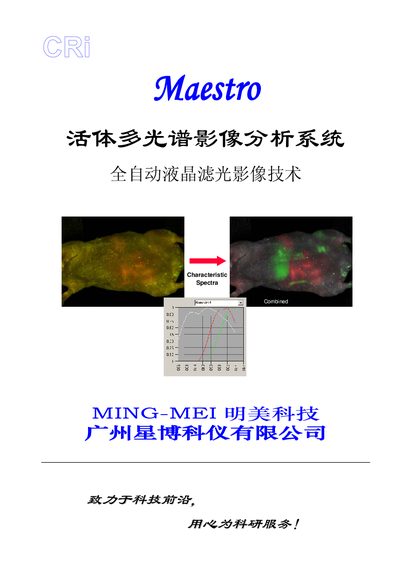

The MING-MEI Maestro multispectral imaging system manual provides an overview, specifications, operation steps, and maintenance information for the…
The Maestro system from MING‑MEI is a fully automated liquid‑crystal tunable filter imaging platform designed for live‑animal multispectral fluorescence studies. It captures full‑spectral data from 420 nm to 950 nm, removes autofluorescence, and supports multiple fluorescent labels for rapid, high‑sensitivity analysis.
The manual describes the optical layout, software workflow, hardware specifications, and practical guidance on sample preparation, anesthesia, and data acquisition. It also lists system dimensions, light‑source details, and warranty and service information for users in research environments. This manual is written in Chinese.
| Camera sensor | 2/3‑inch CCD, 1.3 MP resolution |
|---|---|
| Liquid crystal tunable filter range | 420‑720 nm and 500‑950 nm |
| Minimum wavelength step | 10 nm |
| Optical lens | Nikon f2.8‑f/32 60 mm manual/auto focus |
| Dark‑box external dimensions | 95.0 cm × 47.2 cm × 41.4 cm |
| Excitation light source | Cermax‑type 300 W Xenon lamp, 1 000 h life |
| Full‑spectral capture time | 15‑20 seconds for 15 images |
The filter can be set to any wavelength between 420 nm‑720 nm or 500 nm‑950 nm.
A sequence of 15 images is captured in about 15 to 20 seconds.
The camera uses a 2/3‑inch CCD with a resolution of 1.3 megapixels.
The dark box measures 95.0 cm high, 47.2 cm wide and 41.4 cm deep.
