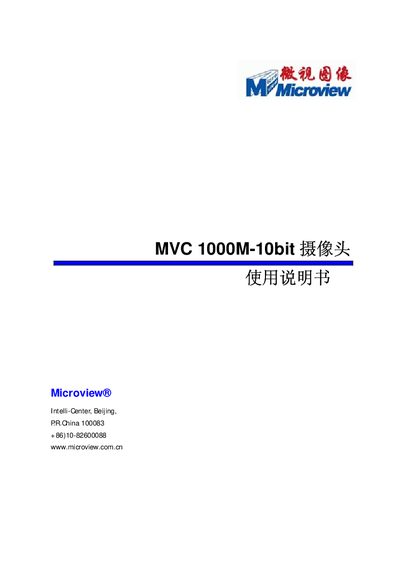

The Microview MVC1000M-10bit security camera user manual provides product overview, installation, software usage, troubleshooting and warranty details.
The manual introduces the MVC1000M-10bit black‑and‑white digital camera, a high‑resolution USB 2.0 device developed by Microview in cooperation with E‑vision. It describes the camera’s features, specifications and the supported SDK for secondary development.
Installation steps cover hardware connection, driver installation, system requirements and software operation. The guide also includes troubleshooting tips, customer service contacts and warranty information for users in China and abroad. This manual is written in Chinese.
| Effective Pixels | 1.3 Megapixel |
|---|---|
| Pixel Size | 5.2 µm × 5.2 µm |
| Dynamic Range | 62 dB |
| Signal‑to‑Noise Ratio | 45 dB |
| Dimensions | 55 × 55 × 39 mm |
| Lens Mount | C/CS standard |
| Power Supply | 5 m USB 2.0 cable, optional external power |
A PC with a USB 2.0‑compatible motherboard, Pentium III‑800 CPU, at least 128 MB RAM, 8 MB video memory, more than 20 MB free hard‑disk space, and Windows 2000 SP2 or Windows XP SP1 installed.
Connect the camera to a USB 2.0 port; Windows will detect the device and prompt for driver installation. Choose “Install from list or location (Advanced)” and browse to the driver files on the supplied CD.
Microview provides a one‑year free warranty from the date of purchase, with an additional three‑month extended warranty after any repair performed by the company.
The camera uses a standard C‑mount or CS‑mount lens interface.
