E412 image acquisition card is a four-channel color/black and white image acquisition card based on PCI-E bus. It supports four-channel composite video signal real-time acquisition and display, and can stably receive standard video signals (PAL, NTSC, SECAM) from various video sources, with a maximum resolution of 768 x 576 per channel.
The E412 is a PCI‑E x1 based four‑channel color/black‑white image acquisition card designed for biomedical, security, and industrial vision applications. It supports PAL, NTSC, and SECAM video standards with up to 768×576 resolution for PAL/SECAM and 640×480 for NTSC.

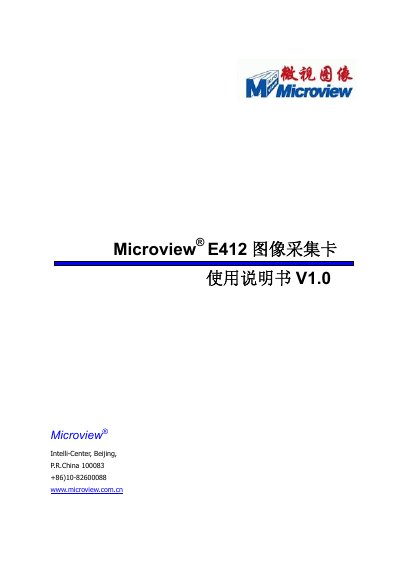

The manual covers an overview of the card, detailed product specifications, block diagram and pin definitions, driver installation instructions, SDK programming guide, common troubleshooting steps, and warranty and customer service information. This manual is written in Chinese.
| Interface | PCI‑E x1 |
|---|---|
| Data Transfer Speed | 250 MB/s |
| Video Inputs | 4 composite video inputs |
| Maximum Resolution (PAL/SECAM) | 768 × 576 |
| Maximum Resolution (NTSC) | 640 × 480 |
| Color Depth | up to 24‑bit |
| Hardware Revision | REV:5.0 |
The driver provides libraries for Windows 9x, Windows 2000, and Windows XP.
The product is covered by a one‑year free warranty and lifetime repair service.
