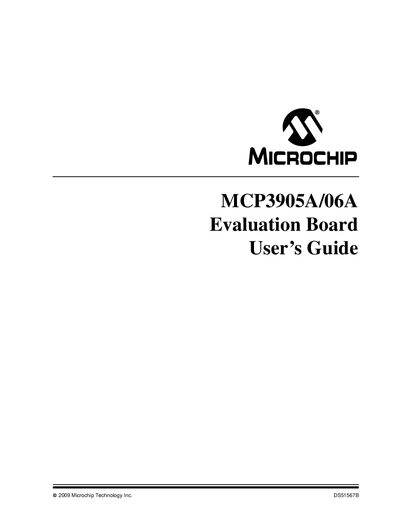

This guide explains how to set up, operate, and understand the MCP3905A/06A Evaluation Board from Microchip.
The MCP3905A/06A Evaluation Board is a development platform that lets users test a variety of energy‑meter designs using the MCP3905A/06A energy‑metering IC. It can be used as a stand‑alone meter front‑end or together with a PICmicro MCU.
The guide provides a product overview, step‑by‑step installation and operation instructions, functional block descriptions, schematics, PCB layout diagrams, and a complete bill of materials. It also lists recommended Microchip reference documents and contact information for technical support.
| MCP3905A IC | Installed on board |
|---|---|
| Power Regulator | 5 V 100 mA |
It is designed to test a variety of meter designs using the MCP3905A/06A energy metering IC.
The complete bill of materials is listed in Appendix B of the guide.
