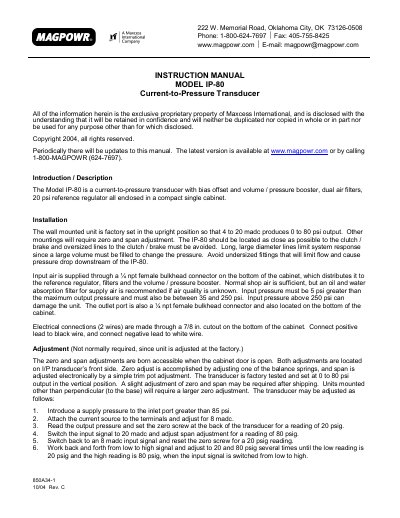

Instruction manual for the Magpowr IP-80 current-to-pressure transducer, covering installation, adjustment, specifications, maintenance, and repair procedures.
The Model IP-80 is a compact current-to-pressure transducer with bias offset and volume/pressure booster capabilities. It features dual air filters and a 20 psi reference regulator enclosed in a single cabinet. The unit is factory set for the upright position where an input of 4 to 20 madc produces a 0 to 80 psi output.
| Output Range | 0 to 80 psi |
|---|---|
| Input Signal | 4 to 20 madc |
| Maximum Supply Pressure | 250 psi |
| Minimum Supply Pressure | 35 psi minimum |
| Flow Capacity | 40 scfm at 100 psi supply and 20 psi set |
| Exhaust Capacity | 0.5 scfm at downstream pressure 5 psi above set point |
The unit is factory set so that an input of 4 to 20 madc produces a 0 to 80 psi output.
The input pressure must be between 35 and 250 psi, as pressures above 250 psi can damage the unit.
Filter element replacement is recommended once a year under normal supply air conditions.
