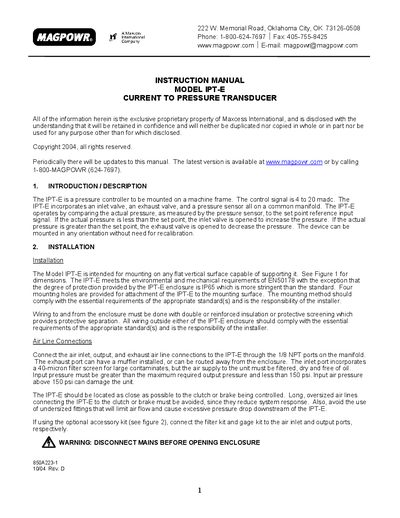

The Magpowr IPT‑E instruction manual provides installation, wiring, maintenance, and troubleshooting details for the current‑to‑pressure transducer.
The IPT‑E is a pressure controller designed for mounting on a machine frame. It receives a 4‑20 mA control signal and uses an integrated inlet valve, exhaust valve, and pressure sensor to regulate pressure. The unit can be installed in any orientation without recalibration and meets IP65 enclosure protection.
The manual covers mounting requirements, air‑line connections, electrical wiring, fuse replacement, and troubleshooting steps. It also lists the full technical specifications, including supply voltage, pressure range, and environmental limits.
| Supply Voltage | 115 or 230 VAC, ±10 % |
|---|---|
| Supply Frequency | 50 or 60 Hz |
| Enclosure Protection | IP65 (IEC529) |
| Operating Temperature Range | 0 °C to 40 °C |
| Storage Temperature Range | -30 °C to +80 °C |
| Pressure Range | 0 to 80 psig (0 to 5.5 bar) |
| Maximum Input Pressure (PB) | 150 psig (10.3 bar) |
| Volume | 0.02 L |
| Fuses | F1, F2 1.6 A, Littelfuse 21601.6 or Wickmann 19194-053-FS |
| Input Signal | 4‑20 mA, 249 Ω input impedance |
Disconnect the supply mains, remove the front cover, replace the blown fuse, reinstall the cover, and reconnect the mains.
The maximum shield length and the maximum length of wires outside the shield is 3 inches (75 mm).
Input air pressure must be less than 150 psi; pressures above 150 psi can damage the unit.
