Leisai DM556/DM856 Stepper Driver User Manual

Leisai DM556/DM856 stepper driver manual with specifications, wiring, setup, and troubleshooting.

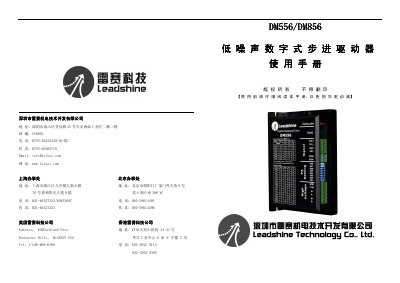

Leisai DM556/DM856 Stepper Driver User Manual - cover page
Brand
雷赛
Category
Industrial Robot
Document type
User Manual
Language
Chinese
Pages
10
File format
PDF
File size
449 KB
Updated
01 October, 2026
Model
DM556
MD5 checksum
42BB0C0D42F21ADF381EF9C6FCD5402C

About this manual

Leisai DM556/DM856 is a digital stepper motor driver using 32-bit DSP technology. The user can set any microstep value within 512 and any current value within the rated range; built-in microstepping and automatic parameter tuning are provided, and the driver is intended for small and medium automation equipment such as engraving, marking, cutting, laser typesetting, plotters, CNC machines, and automatic assembly equipment.

The manual covers electrical, mechanical, and environmental specifications, interface and wiring, current and microstep switch settings, power supply and motor selection, typical wiring examples, protection functions, and common problems. DM556 accepts 20 to 50 VDC and DM856 accepts 20 to 80 VDC; both provide 0.1 to 5.6 A output current. This manual is written in Chinese.

What's inside

  • Product introduction
  • Electrical, mechanical and environmental specifications
  • Driver interface and wiring
  • Current, microstep switch settings and auto-tuning
  • Power supply selection
  • Motor selection
  • Typical wiring examples
  • Protection functions
  • Common problems
  • Warranty terms

Specifications

Output current0.1 to 5.6 A
DM556 input voltage20 to 50 VDC
DM856 input voltage20 to 80 VDC
Control signal input current7 to 16 mA
Step pulse frequency0 to 200 kHz
Pulse response frequencyup to 300 kHz
Insulation resistance500 MΩ
Storage temperature-20 to 80 °C
Humidity40 to 90% RH
Vibration5.9 m/s² max
Weight250 g
Microstep setting range1 to 512
Minimum pulse widthgreater than 1.2 μs
Direction setup timeat least 5 μs before pulse
Recommended supply voltage+36/+48 VDC

Frequently asked questions

What input voltage does the DM556 accept?

The DM556 accepts 20 to 50 VDC.

What input voltage does the DM856 accept?

The DM856 accepts 20 to 80 VDC.

What microstep settings are supported?

The microstep setting range is 1 to 512.

What do the red LED flash counts indicate?

One flash indicates overcurrent or phase short circuit, two flashes indicate overvoltage, and four flashes indicate motor open circuit or poor contact.
