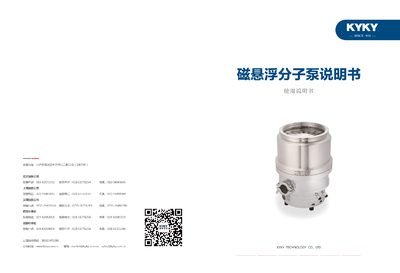

The KYKY CXF-200/1400 magnetic levitation molecular pump user manual provides overview, specifications, installation, operation, and troubleshooting guidance.
This manual introduces the CXF-200/1400 magnetic levitation molecular pump, explaining model designation, working conditions, packaging contents, and safety handling. It includes detailed technical specifications, controller panel functions, communication interfaces, and installation dimensions.
Operational instructions cover startup and shutdown procedures, parameter settings such as speed, heating temperature, and communication baud rate, as well as fault code identification and troubleshooting steps to ensure reliable pump performance. This manual is written in Chinese.
| 抽气速率 (l/s) | 1400 |
|---|---|
| 压缩比 N₂ | 10⁷ |
| 极限压强 | ≤ 2×10⁻⁶ |
| 额定转速 (rpm) | 30000 |
| 启动时间 (min) | 11 |
| 振动值 (μm) | <0.05 |
| 建议前级泵 (l/s) | 15 |
| 冷却方式 | 水冷 |
| 输入电压 (V) | 220±20 |
| 输入功率 (W) | 1000 |
The default baud rate is 9600, which can be changed via the controller’s Set menu.
