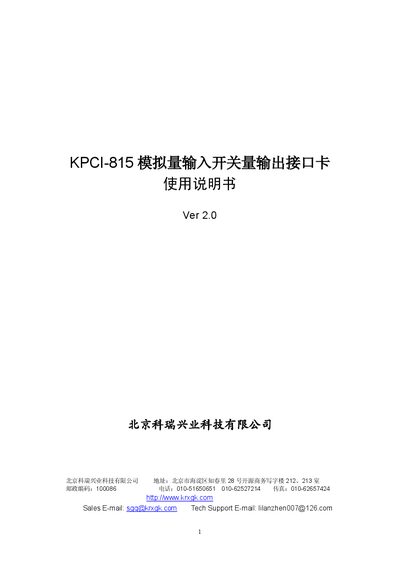

This manual covers the installation, configuration, and programming of the KRXGK KPCI-815 PCI interface card for analog and digital I/O in industrial…
The KPCI-815 is a PCI bus interface card designed for industrial process control systems and laboratory applications. It features 32 single-ended or 16 differential analog input channels with selectable ranges (0-5V, 0-10V, ±5V, ±10V) and 8 optically isolated digital output channels. The card supports both 12-bit and 16-bit resolution modes and includes built-in drivers for Windows 95/98/NT/2000. This manual is written in Chinese.
| Analog Input Channels (Single-ended) | 32 channels |
|---|---|
| Analog Input Ranges | 0V~5V, 0V~10V, ±5V, ±10V |
| Input Impedance | ≥10MΩ |
| A/D Chip Sampling Rate | 100K |
| Maximum System Acquisition Frequency | 15K |
| System Comprehensive Error | ≤0.2% FRS |
| Digital Output Channels | 8 channels |
| Digital Output Voltage Range | 5-24V |
| Maximum Output Current | 100 mA |
| Isolation Voltage | 500V |
| Operating Temperature | 0℃～70℃ |
| Storage Temperature | －55℃～＋85℃ |
| Dimensions | 200mm x 100mm |
The card supports input signal ranges of 0V~5V, 0V~10V, ±5V, and ±10V.
The card has 8 optically isolated digital output channels.
The maximum output current is 100 mA, allowing it to directly drive relays.
The drivers support Windows 95, 98, NT, and 2000.
