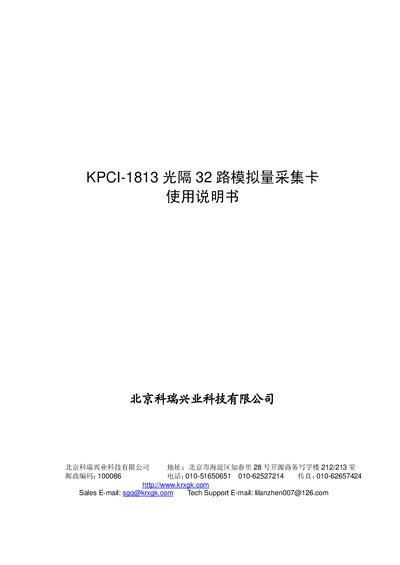

The KPCI-1813 analog acquisition card manual provides hardware overview, specifications, installation, driver setup, and programming guidance.
The KPCI-1813 is a PCI‑bus isolated high‑speed analog acquisition card offering 32 input channels, up to 100 KS/s sampling, 12‑bit resolution and 2500 VDC isolation, suitable for laboratory, quality‑control and industrial process monitoring applications. It supports single‑ended or differential inputs, programmable gain, and three trigger modes (software, timer, external TTL).\n\nThe manual covers a complete product overview, detailed technical specifications, component layout and connector definitions, Windows 2000/XP driver installation steps, software test utilities, function‑call APIs with VB/VC example programs, calibration procedures, warranty information and a parts list. This manual is written in Chinese.
| Analog input channels | 32 (single‑ended) or 16 (differential) |
|---|---|
| Resolution | 12 bit |
| FIFO buffer | 4 K samples |
| Conversion time | 2.5 µs |
| Maximum input overload voltage | ±30 V |
| Maximum sampling rate | 100 KS/s |
| Linear error | ±1 LSB |
| Input impedance | 1 GΩ |
| Power consumption | +5 V @ 1 A (max) |
| Operating temperature | 0 °C – 60 °C |
| Storage temperature | -20 °C – 70 °C |
| Operating humidity | 5 % – 95 % |
The card provides 32 single‑ended input channels, or 16 differential channels when programmed accordingly.
