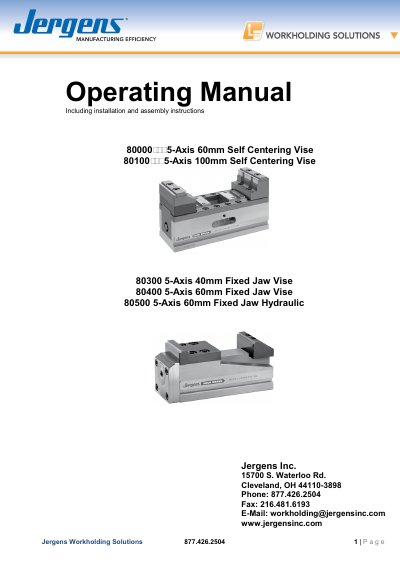

Jergens 5-Axis Vises Operating Manual

About this manual

This operating manual provides instructions for the installation, assembly, and operation of Jergens 5-Axis Vises. It covers various models including the 80000 (Self Centering 60mm), 80100 (Self Centering 100mm), 80300 (Fixed Jaw 40mm), 80400 (Fixed Jaw 60mm), and 80500 (Hydraulic Fixed Jaw 60mm). The document details safety information, technical data, and procedures for fastening the vise to a machine bed.

What's inside

• General
• Safety information
• Technical data
• Fastening to the machine bed
• Hydraulic oil connection
• Adjusting the clamping range
• Clamping and unclamping
• Troubleshooting
• Maintenance and care
• Spare parts

Frequently asked questions

What hydraulic oil is recommended for the 5-Axis Vises?

The recommended hydraulic oil is HLP32 or HLP46 according to DIN 51524.

How should the machine vice be fastened to the machine bed?

The machine vice must be fastened firmly to the machine bed using screws to ensure work pieces cannot be moved by machining forces.

What is the maximum insertion clearance for hydraulic versions?

Only part of the hydraulic stroke must be used as clearance for work piece insertion to ensure safe clamping.

Who should perform repairs on the Centering Vise line?

Repair of the Centering Vise line must be carried out by the manufacturer.
