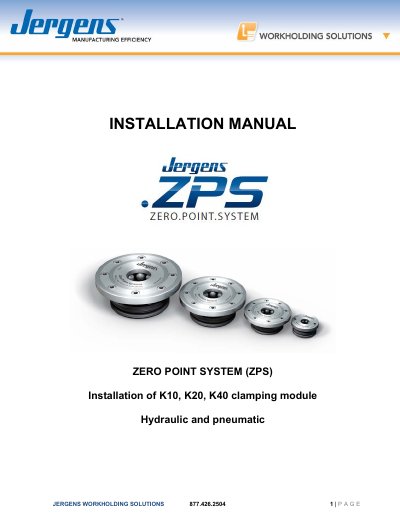

Installation manual for Jergens Zero Point System (ZPS) K10, K20, and K40 clamping modules, covering hydraulic and pneumatic versions.
This document serves as the installation manual for the Jergens Zero Point System (ZPS) clamping modules, specifically models K10, K20, and K40. It provides instructions for both hydraulic and pneumatic versions of the system, ensuring safe and correct setup.
| Pull-in and locking force (Hydraulic K10) | 10 kN / (2,250 lbs) |
|---|---|
| Holding force (Hydraulic) | 25 kN / (5,620 lbs) to 105 kN / (23,600 lbs) |
| Max. operating pressure (Hydraulic) | 60 bar / (870 psi) |
| Min. operating pressure (Hydraulic) | 50 bar / (725 psi) |
| Max. operating temperature | 80 °C / 176 °F |
| Maintenance interval | 150,000 clamping cycles |
This manual covers the K10, K20, and K40 clamping module models.
The manual includes instructions for both hydraulic and pneumatic versions of the system.
The maximum operating pressure for the hydraulic version is 60 bar / (870 psi).
Maintenance is required after 150,000 clamping cycles.
