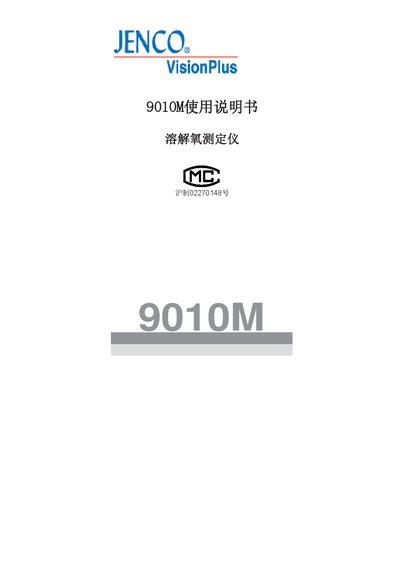

The Jenco 9010M manual provides step‑by‑step instructions for operating, calibrating, and maintaining the dissolved oxygen meter.
This manual describes the features of the Jenco 9010M dissolved oxygen and temperature meter, including its waterproof housing, single 9 V battery power, EEPROM data storage, and automatic temperature and pressure compensation. It also lists the supplied LD‑900‑11 electrode and explains how to prepare, calibrate, and measure dissolved oxygen in the field or laboratory.
The guide covers battery replacement, button functions, data storage, recall and delete procedures, error troubleshooting, specifications, warranty information, and contact details for Jenco service centers. This manual is written in Chinese.
| Dissolved Oxygen range (ppm) | 0~20.00 ppm |
|---|---|
| Dissolved Oxygen resolution (ppm) | 0.01 ppm |
| Dissolved Oxygen resolution (%) | 0.1 % |
| Temperature range | -6.0~46.0 °C |
| Temperature accuracy | ±0.3 °C |
| Pressure compensation range | 600~1100 mBar (450~825 mmHg) |
| Salinity compensation range | 0.0~40.0 ppt |
| Power supply | 9 V battery |
| Data storage capacity | 50 data sets |
| Automatic shut‑off | 45 minutes of non‑use |
| Dimensions (W×D×H) | 70 mm × 198 mm × 37 mm |
During calibration you can adjust the pressure compensation between 600 mBar and 1100 mBar (450 mmHg to 825 mmHg).
