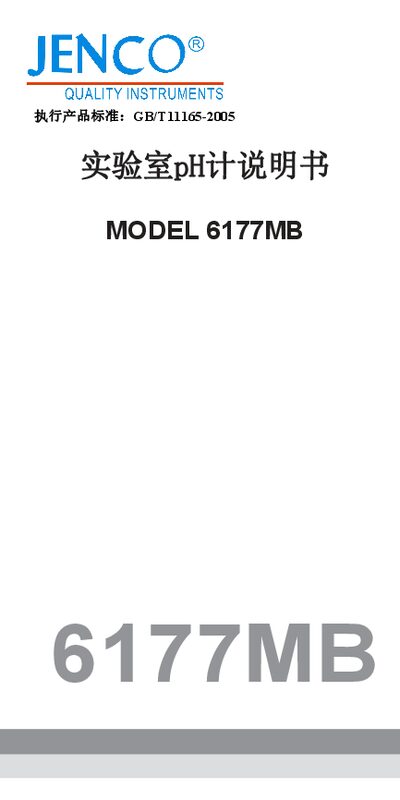

The JENCO 6177MB pH meter manual provides setup, operation, Bluetooth linking, error codes and specifications for laboratory use.
This manual introduces the JENCO 6177MB laboratory pH/ORP meter, describing its hardware, power options, connectors, display, keys and Bluetooth wireless transmission. It guides users through battery installation, calibration procedures, measurement steps for pH, mV and temperature, and data storage.
The document also lists error codes with possible causes and corrective actions, provides full technical specifications, and outlines the one‑year warranty and service information for the instrument. This manual is written in Chinese.
| pH measurement range | 0.00 ~ 14.00 pH |
|---|---|
| pH resolution | 0.01 pH |
| pH accuracy | ±0.01 pH |
| mV measurement range | -1999.9 ~ 1999.9 mV |
| Temperature measurement range | -10.0 ~ 120.0 °C |
| Data storage capacity | 750 measurement sets |
| Dimensions | 150 × 210 × 45 mm |
| Weight | 430 g |
| Ingress protection | IP54 |
Er1 indicates the buffer solution value or electrode offset is outside ±1.0 pH. Press Clear, wait for the electrode to stabilize, then press Stand, or replace the buffer solution or electrode.
