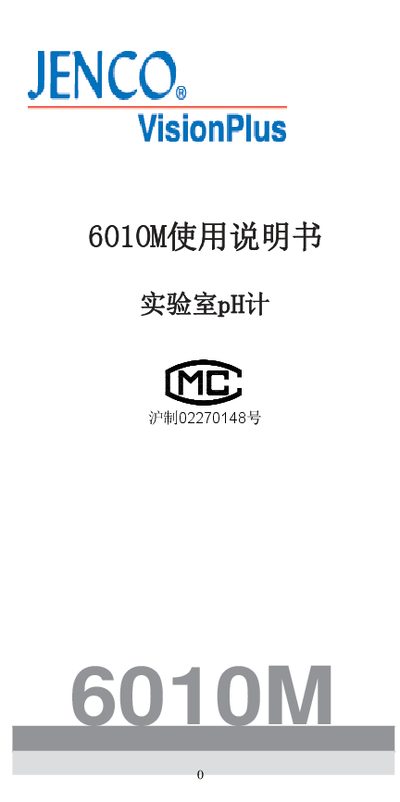

The JENCO 6010M laboratory pH meter user manual provides setup, calibration, measurement and troubleshooting instructions.
This manual describes the JENCO 6010M laboratory pH meter, a waterproof instrument that measures pH, ORP and temperature. It runs on a single 9 V battery, stores up to 50 data sets in EEPROM and offers automatic and manual temperature compensation.
The guide covers product inspection, battery replacement, display and button functions, calibration procedures, measurement modes for pH, mV and temperature, data storage, error troubleshooting and warranty information. This manual is written in Chinese.
| pH measurement range | -2.00 to 16.00 pH |
|---|---|
| mV measurement range | -1999 to 1999 mV |
| Temperature measurement range | -10.0 to 120.0 °C |
| Power supply | 1 × 9 V DC battery |
| Data storage capacity | 50 data sets |
| Auto shut‑off | 30 minutes of non‑use |
| IP rating | IP65 (water‑proof housing) |
| Dimensions (W × D × H) | 70 mm × 198 mm × 37 mm |
When the “BAT” icon flashes, the battery is low and the meter can operate for about one more hour before a replacement is needed.
The instrument can store up to 50 groups of measurement data in its EEPROM.
