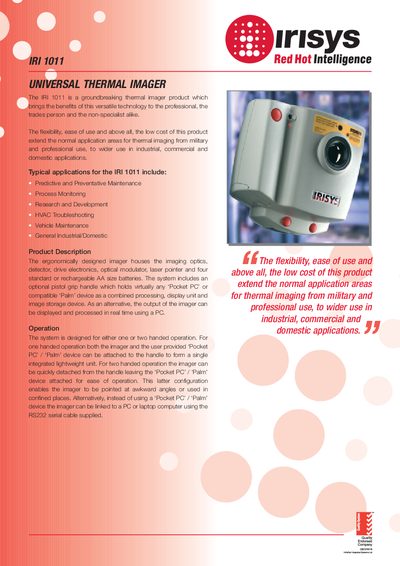

The Irisys IRI 1011 thermal imager measures -10 °C to +300 °C, displays 96×96‑pixel images, and works with Pocket PC, Palm or PC.
The IRI 1011 is a handheld thermal imager designed for professionals, tradespeople and non‑specialists. It supports predictive maintenance, process monitoring, HVAC troubleshooting and vehicle inspection, and can be operated with a Pocket PC, Palm device or a PC via RS‑232.
The device features a 20° × 20° field of view, 0.3 K sensitivity at 30 °C, a 96 × 96 pixel display, and up to 1000 images per MB of memory. Power is supplied by four AA batteries (up to 8 h runtime) or an optional AC adaptor, and the unit can be mounted handheld or on a tripod.
| Temperature Measurement range | -10 °C to +300 °C |
|---|---|
| Field of view (FOV) | 20° × 20° |
| Spectral Response | 8 µm to 14 µm |
| Sensitivity | ~0.3 K @ 30 °C |
| Displayed image resolution | 96 × 96 pixels |
| Detector array | 16 × 16 pixel |
| Frame rate | 8 Hz |
| Image storage capacity | Up to 1000 images per MB |
| Laser pointer | Built‑in Class II laser |
| Power supply | 4 × AA removable batteries (or AC adaptor) |
| Battery operation time | Up to 8 hours |
| Dimensions | 120 mm × 125 mm × 80 mm |
| Weight | < 600 g (excluding accessories) |
| Mounting options | Handheld & tripod |
| Operating temperature range | -5 °C to +50 °C |
| Storage temperature range | -20 °C to +80 °C |
| Humidity range | 10 % to 90 % non‑condensing |
It can measure temperatures from -10 °C up to +300 °C.
The imager runs for up to 8 hours on four AA batteries.
Images can be viewed on a Pocket PC, Palm device, or a PC via an RS‑232 cable.
The display shows images at 96 × 96 pixels.
