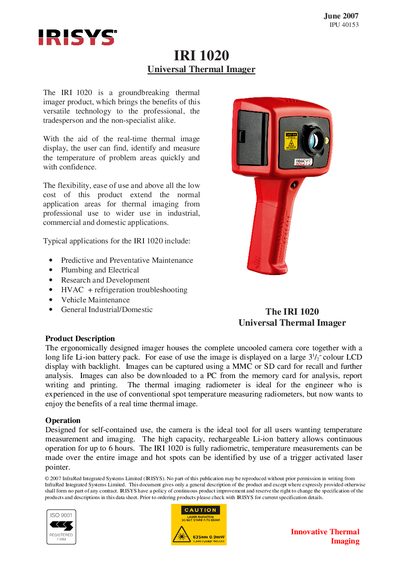

The document describes the features and characteristics of the IRI 1020 Universal Thermal Imager, including real-time thermal image display, temperature measurement, and image downloading. It is suitable for various industries and fields.
The IRI 1020 is a handheld universal thermal imager that combines an uncooled camera core with a 3‑inch colour LCD display and a long‑life Li‑ion battery. Images are stored on an MMC/SD card and can be transferred to a PC for analysis. The device includes a built‑in Class 2 laser pointer for highlighting reference pixels and offers multiple colour palettes for image display.
Designed for easy operation, the imager delivers real‑time temperature measurement across the entire image, with a temperature range of –10 °C to +300 °C and a sensitivity of ~0.3 °C at 30 °C. It provides up to 6 hours of continuous use, supports handheld or tripod mounting, and meets CE marking requirements for industrial, commercial, and domestic applications.
| Sensitivity | ~0.3°C @ 30°C |
|---|---|
| Image resolution | 192 × 192 pixels |
| Detector array | 16 × 16 pixel |
| Focal range | 0.7 m to infinity |
| Image storage capacity | Up to 1000 images on SD card |
| Battery type | Lithium‑ion rechargeable |
| Operation time | Up to 6 hours continuous |
| Housing material | Impact‑resistant plastic |
| Dimensions | 230 × 120 × 90 mm |
| Weight | 0.70 kg |
| Humidity range | 10 % to 90 % non‑condensing |
The IRI 1020 can operate continuously for up to 6 hours on its rechargeable Li‑ion battery.
Up to 1000 images can be saved on the supplied SD card.
A built‑in Class 2 laser pointer is provided to highlight the reference pixel.
