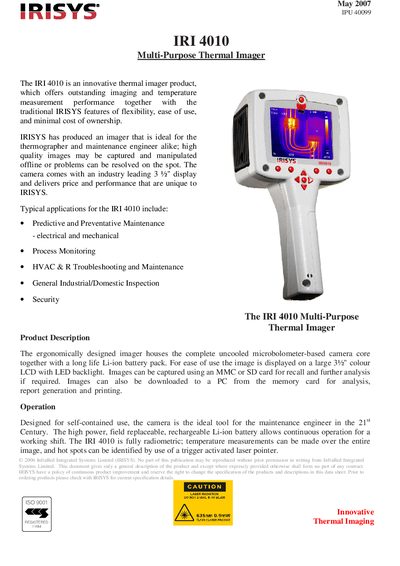

The IRISYS IRI 4010 is an innovative thermal imager product that offers outstanding imaging and temperature measurement performance, as well as the traditional IRISYS features of flexibility, ease of use, and minimal cost of ownership. It is ideal for both thermographers and maintenance engineers, allowing for the capture and offline manipulation of high-quality images or on-the-spot problem resolution. The camera features an industry-leading 3.5-inch display and delivers price and performance that are unique to IRISYS. Typical applications include predictive and preventative maintenance, process monitoring, HVAC and refrigeration troubleshooting and maintenance, general industrial/domestic inspection, and security.
The IRISYS IRI 4010 is a multi‑purpose thermal imager designed for predictive maintenance, process monitoring, HVAC troubleshooting, industrial inspection, and security applications. It features an uncooled microbolometer camera core, a large colour LCD with LED backlight, and a built‑in Class 2 laser pointer for precise measurement targeting.
The guide covers setup, operation, and maintenance, including battery handling, image capture to MMC/SD cards, USB connectivity, and software for PC analysis. Key specifications such as field of view, temperature range, accuracy, and storage capacity are detailed, along with optional accessories and mounting options.
| Field of view (FOV) | 20° x 15° |
|---|---|
| Focus type | Manual |
| Minimum focus distance | 30 cm |
| Spectral response | 8 µm to 14 µm |
| Thermal sensitivity | 150 mK (0.15 °C) @ 21 °C ambient |
| Detector resolution | 160 × 120 pixels |
| Image storage capacity | Up to 1000 images on SD card |
| Display | 3.4% colour LCD with LED backlight |
| Temperature measurement range | -10 °C to +250 °C |
| Accuracy | +2 °C or +2 % |
| Battery operation time | 4 hours continuous |
| Dimensions | 230 mm × 120 mm × 110 mm |
| Weight | 0.75 kg (including battery) |
| Ambient operating temperature | -15 °C to +45 °C |
| Ambient storage temperature | -20 °C to +70 °C |
| Humidity range | 10 % to 90 % non‑condensing |
The IRI 4010 can measure temperatures from –10 °C up to +250 °C.
Up to 1,000 images can be stored on the supplied SD card.
The rechargeable Li‑ion battery provides about 4 hours of continuous operation.
It features a 3.4 % colour LCD with LED backlight and four colour palettes.
