INFICON SQC-310 Series Thin Film Coating Controller User Manual

User manual for the INFICON SQC-310 thin film coating controller, covering safety, setup, operation, maintenance and communications.

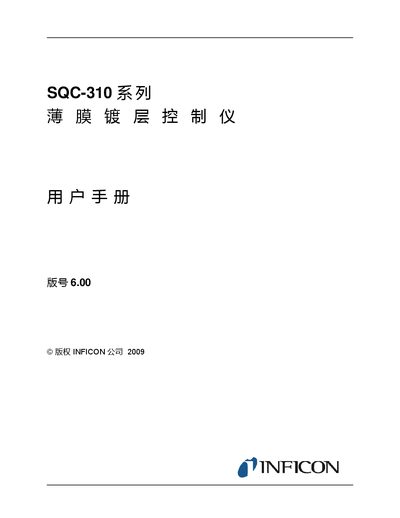

INFICON SQC-310 Series Thin Film Coating Controller User Manual - cover page
Brand
Inficon
Category
Industrial Supply
Document type
User Manual
Language
Chinese
Pages
104
File format
PDF
File size
723 KB
Updated
30 September, 2026
MD5 checksum
3DE1AAE8E038C0817135F8CA8FFD0BB7

About this manual

The INFICON SQC-310 series is a multi-channel quartz-crystal-microbalance-based thin film coating controller. This manual covers safety information, warranty, quick start, operation, menus, maintenance, and communications for installing, operating, and maintaining the equipment.

The standard SQC-310 supports up to two quartz crystal sensors and up to two evaporation sources, with eight process-control relays and eight digital inputs; sensor, output, and digital I/O counts can be doubled with an expansion board. The SQC-310C co-deposition model supports simultaneous deposition of up to four materials, and RS-232 and USB communication are standard with an Ethernet option. This manual is written in Chinese.

What's inside

  • Quick start
  • Panel and rear panel
  • System connections
  • Installation
  • Menus
  • Thin film deposition overview
  • Creating a process
  • Depositing a film layer
  • Operation and definitions
  • Maintenance

Specifications

Power input100-120/200-240 V AC, 50/60 Hz, 25 VA
FuseT 0.5 A, 250 V
Warranty2 years from shipment date
Return period30 days in new condition
Sensors (standard)Up to 2 quartz crystal sensors
Evaporation sources (standard)Up to 2 evaporation sources
Process-control relays8
Digital inputs8
Co-deposition (SQC-310C)Up to 4 materials simultaneously
CommunicationRS-232 and USB standard; Ethernet optional

Frequently asked questions

What is the warranty for the INFICON SQC-310?

It has a two-year warranty from the shipment date for material and workmanship defects when used as described in the manual.

Can the SQC-310 be returned after purchase?

Yes, the buyer may return it in new condition within 30 days of shipment, and the buyer pays all shipping costs.

What power supply does the SQC-310 require?

It automatically detects 100-120 or 200-240 V AC at 50/60 Hz.

How many sensors and evaporation sources does the standard SQC-310 support?

The standard unit supports up to two quartz crystal sensors and up to two evaporation sources.
