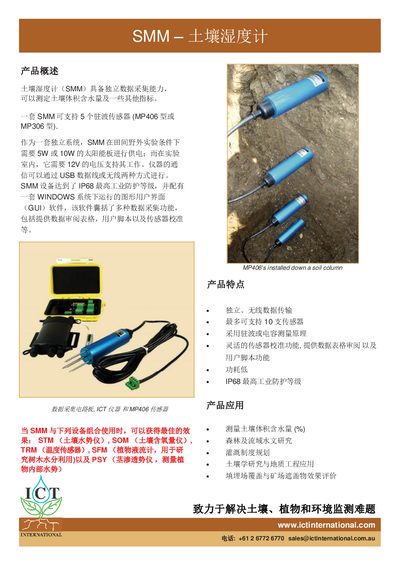

The ICT International SMM soil moisture meter manual describes features, specifications, software, and usage for field and laboratory monitoring.
The SMM soil moisture meter is a standalone device that measures soil volumetric water content and other parameters. It supports up to 10 sensors (MP306 or MP406) and can be powered by a 5 W or 10 W solar panel in the field or a 12 V supply in the lab. Data can be transferred via USB cable or wireless up to 250 m, and the system includes a Windows‑based GUI for data review, scripting, and sensor calibration.
The manual also details compatible sensors, application scenarios such as forest hydrology, irrigation planning, and geotechnical monitoring, as well as hardware components, power management, and communication options. Technical specifications, software features, and optional accessories are provided in the final sections. This manual is written in Chinese.
| Power supply | 12‑24 V DC |
|---|---|
| Power consumption | 20 mA |
| Resolution | 24‑bit |
| Measurement accuracy | 0.001 V |
| Data storage capacity | 2 GB expandable to 64 GB |
| Operating temperature range | -40 °C to +80 °C |
| IP protection rating | IP68 |
| Battery type | Built‑in polymer lithium battery |
The SMM can support up to 10 sensors.
The device meets the IP68 industrial protection rating.
