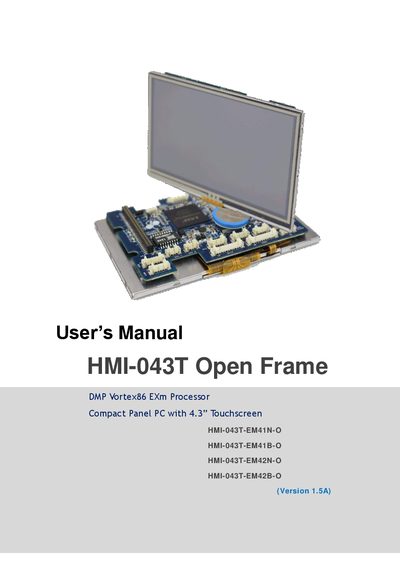

The ICOP HMI-043T User Manual provides product description, specifications, installation, driver setup, and warranty information for the open‑frame 4.3"…
The HMI-043T is an open‑frame compact panel PC featuring a 4.3" resistive touchscreen, fanless design, and DMP Vortex86 EXm processor. It is intended for industrial and embedded applications and supports multiple operating systems and I/O interfaces.
This manual covers general product information, detailed specifications, mechanical dimensions, installation procedures, connector pin assignments, driver installation notes, and warranty terms. It also includes ordering information and inspection standards for the TFT‑LCD panel.
| Processor | DMP Vortex86 EXm 400 MHz |
|---|---|
| Memory | 128 MB / 256 MB DDRIII |
| Storage | 512 MB / 4 GB eMMC Flash |
| Ethernet | 10/100 Mbps Ethernet |
| USB ports | 2 USB 2.0 ports |
| Power requirement | +5 VDC |
| Power consumption | +5 V @ 2 A |
| Dimensions | 105.5 × 67.2 × 13.6 mm |
| Weight | 250 g |
| Display size | 4.3‑inch WQVGA TFT LCD |
| Resolution | 480 × 272 pixels |
| Luminance | 280 cd/m² |
| Contrast ratio | 450:1 |
The unit requires a +5 VDC power source.
It uses the DMP Vortex86 EXm 400 MHz processor.
The product is warranted for one year from the date of purchase.
