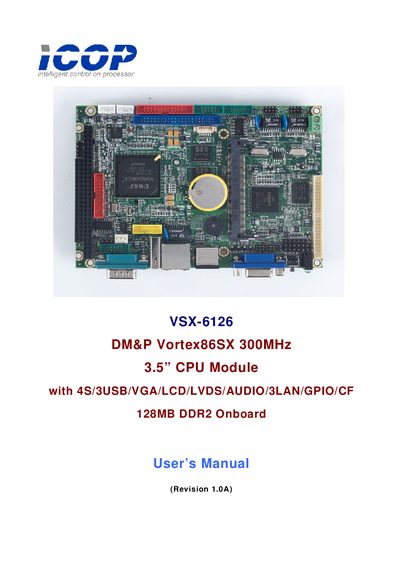

This document describes the features and characteristics of the VSX-6126 DM&P Vortex86SX 300MHz 3.5” CPU Module, including connectors, jumpers, pin assignments, system mapping, watchdog timer, and GPIO.
The VSX-6126 is a low‑power 3.5" x86 embedded controller featuring a 300 MHz Vortex86SX SoC, 128 MB DDR2 memory, and a rich set of interfaces including VGA, LVDS, USB, Ethernet, IDE, and GPIO. The manual provides detailed installation, connector pin‑outs, system mapping, and BIOS configuration guidance.
Key sections cover the packing list, board dimensions, connector locations, jumper settings, watchdog timer operation, driver installation, and warranty information, helping developers integrate the module into industrial, automotive, or medical applications.
| CPU | Vortex86SX 300 MHz |
|---|---|
| System Memory | 128 MB DDR2 onboard |
| VGA Memory | 32 MB onboard |
| Ethernet Ports | 10/100 Mbps x3 |
| USB Ports | USB 2.0 x3 (plus external connector) |
| IDE Connector | 44‑pin box header x1 |
| GPIO | 16‑bit port x1 |
| Operating Temperature | -20 °C to +70 °C |
| Dimensions | 102 mm × 144 mm |
The product is warranted for one year from the date of purchase.
It operates from –20 °C up to +70 °C (optional –40 °C to +85 °C).
