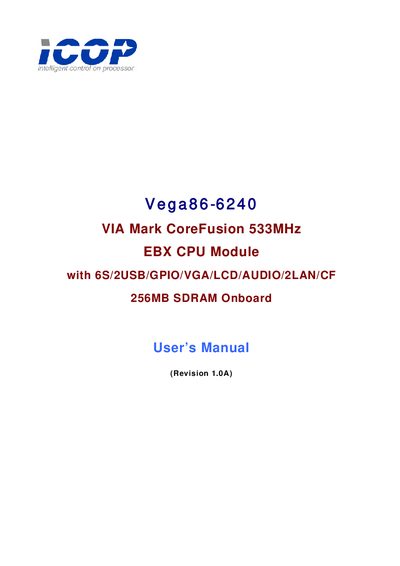

This is a user manual for Vega86-6240 VIA Mark CoreFusion 533MHz EBX CPU Module with 6S/2USB/GPIO/VGA/LCD/AUDIO/2LAN/CF 256MB SDRAM Onboard.
This manual describes the Vega86-6240 EBX CPU Module, a single‑board computer powered by a VIA Mark CoreFusion 533 MHz processor with integrated graphics, Ethernet, USB, and other I/O. It includes a packing list, product description, technical specifications, board dimensions, connector layouts, and driver installation guidance.
Additional sections cover flat‑panel wiring, power requirements, operating temperature range, and the one‑year warranty terms. The document is intended for system integrators and end users who need to install, configure, and maintain the module.
| CPU | VIA Mark CoreFusion 533 MHz |
|---|---|
| Chipset | VIA VT82C686B |
| System Memory | 256 MB SDRAM onboard |
| Cache | L1 64 KB, L2 64 KB |
| Bus Interface | PC/104 Standard Compliant (Optional PCI‑104) |
| Graphics | Integrated 2D/3D AGP4X with MPEG2 accelerator, shared memory 8 / 16 / 32 MB |
| Ethernet Controller | Realtek RTL8100B 10/100 Mbps |
| Audio Codec | VIA VT1612A AC97 |
| IDE Port | Enhanced IDE UltraDMA‑100/66/33 |
| RS232 Ports | 4 |
| RS485 Ports | 2 (auto‑direction) |
| Parallel Port | 1 |
| Floppy Disk Port | 1 |
| USB Ports | 2 (USB 1.1) |
| GPIO Port | 16‑bit, 1 connector |
| Ethernet Ports | 2 (10/100 Mbps) |
| Power Requirement | +5 V @ 2.5 A |
The module uses a VIA Mark CoreFusion processor running at 533 MHz.
It provides two USB 1.1 ports.
The product is warranted for one year from the date of purchase.
