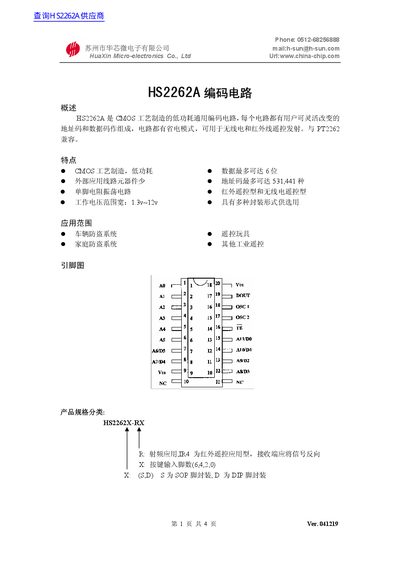

HS2262A is a low‑power CMOS encoding circuit with flexible address and data settings for RF and IR remote applications.
The HS2262A encoding circuit is manufactured with CMOS technology and offers a wide operating voltage range (1.3 V‑12 V). It provides flexible address and data code configuration, low‑power modes, and single‑pin resistor‑oscillator operation, making it suitable for vehicle anti‑theft, home security, remote‑control toys, and other industrial remote‑control applications.
The document includes pin definitions, electrical parameters, package options, and application guidelines, allowing designers to adjust external resistors to set oscillation frequency and encoding width for their specific needs. This manual is written in Chinese.
| Operating voltage range | 1.3 V ~ 12 V |
|---|---|
| Maximum power consumption (Vcc=12 V) | 300 mW |
| Operating temperature range | -20 °C ~ +70 °C |
| Storage temperature range | -40 °C ~ +125 °C |
| Maximum address codes | 531,441 |
HS2262A is compatible with the PT2262 encoding circuit.
It can support up to 531,441 different address codes.
The circuit operates from 1.3 V to 12 V.
Maximum power consumption is 300 mW.
