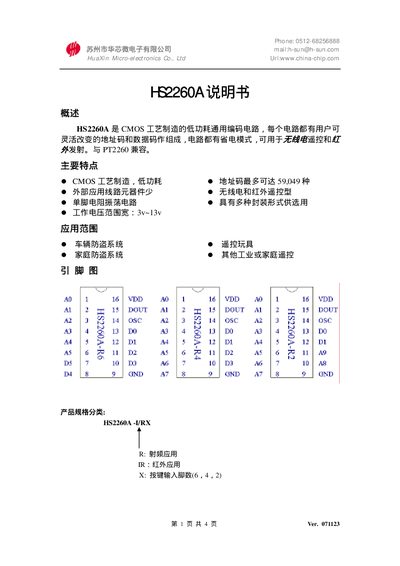

The Huaxin HS2260A is a CMOS low‑power general‑purpose encoder circuit with programmable address and data codes.
The HS2260A encoder circuit is designed for wireless and infrared remote‑control applications. It features a built‑in oscillator, user‑programmable address and data codes, and operates from a wide supply range.
Electrical specifications include a supply voltage of 3 V to 13 V, power consumption of 59,049 µW, and operating temperature from –20 °C to +70 °C. The device is offered in SOP16 and DIP16 packages with recommended resistor values for address and data pins listed in the datasheet. This manual is written in Chinese.
| Supply voltage (Vcc) | 3 V ~ 13 V |
|---|---|
| Standby current (Icc) | 0.3 µA |
| Output high current (Ioh) at Vcc=5 V | -3 mA |
It operates from 3 V up to 13 V.
Resistor values from 1.5 MΩ up to 10 MΩ are listed for the address pins.
