The HS2262A is a low‑power CMOS encoding circuit with programmable address and data codes, operating from 3 V to 13 V and supporting up to 531,441 address…
The HS2262A is a CMOS‑process universal encoding circuit that provides user‑programmable address and data codes. It operates in a wide voltage range (3 V‑13 V) and can store up to 531,441 unique address codes, making it suitable for remote‑control and wireless applications.

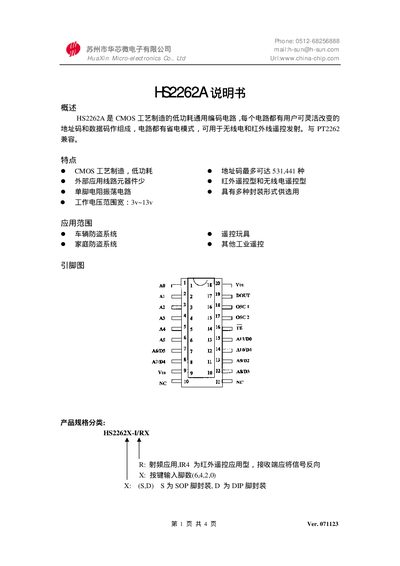

The device includes multiple package options (SOP20, DIP18) and offers typical electrical characteristics such as 300 mW power consumption, operating temperature from –20 °C to +70 °C, and test temperature from –40 °C to +125 °C. Detailed pin assignments and recommended operating conditions are provided for integration into designs. This manual is written in Chinese.
| Operating voltage (Vcc) | 3 V ~ 13 V |
|---|---|
| Power consumption (Pa) | 300 mW |
| Operating temperature (Topr) | -20 °C ~ +70 °C |
| Test temperature (Tstg) | -40 °C ~ +125 °C |
| Input voltage tolerance (Vi) | -0.3 V ~ Vcc+0.3 V |
| Output voltage tolerance (Vo) | -0.3 V ~ Vcc+0.3 V |
| Package options | SOP20, DIP18 |
The HS2262A operates from 3 V to 13 V.
Normal operation is specified from –20 °C to +70 °C.
Typical power consumption is 300 mW.
