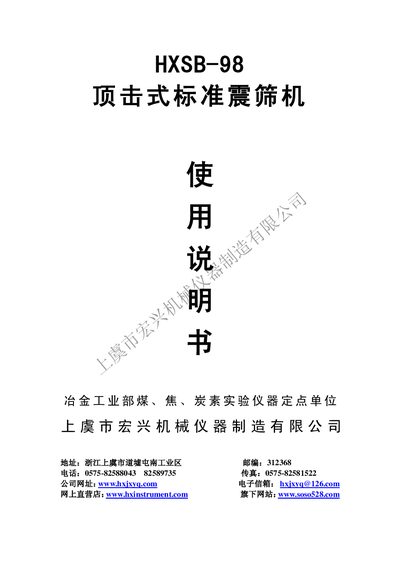

The Hongxing HXSB-98 top‑impact standard shaker manual provides usage, installation, and maintenance instructions for laboratory material screening.
The HXSB-98 top‑impact standard shaker is designed for material screening in laboratories of geology, metallurgy, chemistry, coal, defense, research, sand‑wheel, cement and construction sectors. It offers a compact size, lightweight construction and reliable performance for precise particle analysis.
The machine consists of a base, cover, rotating mechanism, impact mechanism, clamping system and interchangeable screens. It operates with a 0.37 kW motor at 2800 rpm, delivering 221 shakes per minute and 147 impacts per minute. The manual details operating steps, installation of the four anchoring bolts, oiling procedures, cleaning schedules and safety precautions. This manual is written in Chinese.
| Maximum screen diameter | 200 mm |
|---|---|
| Screen stack height | 400 mm |
| Rotating radius | 12.5 mm |
| Screen shaking frequency | 221 times/min |
| Impact frequency | 147 times/min |
| Vertical travel amplitude | 5 mm |
| Timer range | 0–60 minutes |
| Motor power | 0.37 kW |
| Supply voltage | 380 V |
| Motor speed | 2800 rpm |
Set the timer to the desired screening time, then turn on the power switch; the shaker will begin its rotating operation.
Four anchoring bolts must be tightened to firmly fix the shaker to the floor.
The motor runs in reverse on the first start; swapping the power leads restores normal impact operation.
