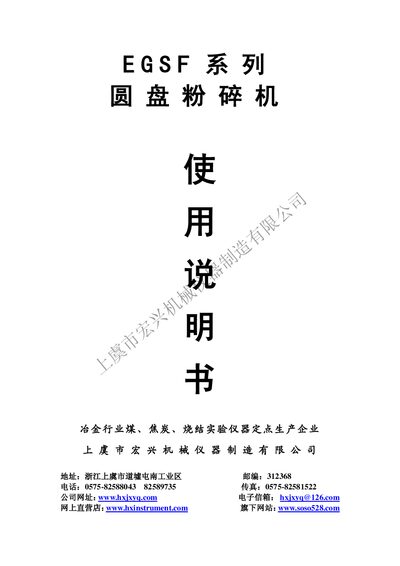

The Hongxing EGSF series disc crusher user manual provides safety guidelines, operation instructions, specifications, and maintenance information.
The EGSF series disc crusher is designed for crushing medium‑hard ore in metallurgical, geological, building material and chemical laboratory settings. The machine consists of a frame, base, spindle, moving and fixed grinding plates, end caps and a hopper, with power transmitted via a triangular belt.
This manual includes user advisories, installation and operating precautions, detailed model specifications, and a certificate of conformity. It guides operators on proper setup, safe operation, adjustment of grinding gaps, and regular maintenance procedures. This manual is written in Chinese.
| Disc diameter (mm) | Φ150, Φ175, Φ200, Φ250, Φ300 |
|---|---|
| Feed size (mm) | ≤2, ≤3, ≤5, ≤6, ≤8 |
| Output size (mesh) | 120‑325 (Φ150‑Φ200), 120‑200 (Φ250‑Φ300) |
| Production capacity (kg/h) | 20, 25, 30, 50, 80 |
| Motor power (kW) | 1.1, 1.1, 2.2, 3, 3 |
It uses a three‑phase four‑wire 380 V power supply with a neutral line.
By turning the hand wheel and spindle to change the gap between the grinding plates.
