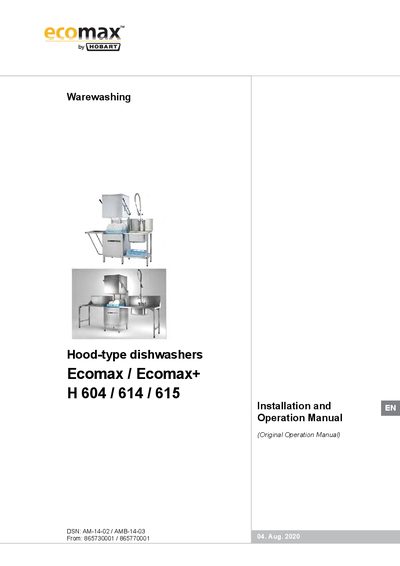

Installation and operation guide for Hobart Ecomax/Ecomax+ hood‑type commercial dishwashers (models H604, H614, H615).
This manual provides qualified personnel with detailed instructions for installing, commissioning, and safely operating Hobart's Ecomax/Ecomax+ hood‑type commercial dishwashers. It includes safety warnings, wiring diagrams, and step‑by‑step procedures for connecting power, water, and drainage systems.
Operators will find sections on program selection, daily and weekly cleaning, fault display, troubleshooting, and routine maintenance. Technical specifications such as dimensions, water consumption, and noise levels are listed for quick reference.
| Dimensions (H x W x D) | 1480 x 635 x 742 mm |
|---|---|
| Water consumption per basket | 2.3 l |
| Tank capacity | 21 l (23 l for model H615) |
| Rack height | 440 mm |
| Noise emission | 67 dB(A) |
| Weight | 100 kg |
| Power supply | see rating plate |
The manual warns of electric shock, fire hazard, crushing, explosion, and frost damage, and advises using protective equipment and qualified personnel.
Each wash basket consumes 2.3 liters of water.
The dishwasher measures 1480 mm high, 635 mm wide, and 742 mm deep.
The machine emits 67 dB(A) of noise under workplace‑related conditions.
