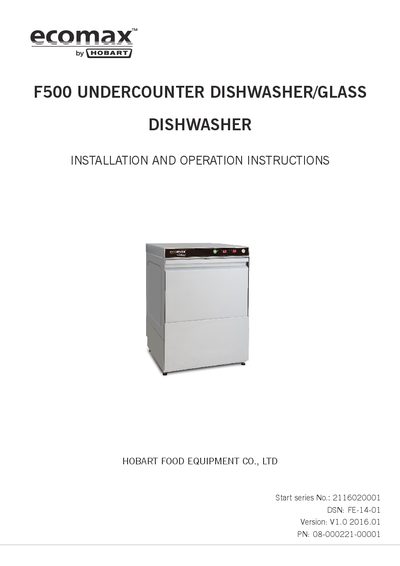

Installation, operation, cleaning, maintenance and troubleshooting guide for the Hobart F500 undercounter dishwasher.
The Hobart F500 undercounter dishwasher manual provides step‑by‑step instructions for safe transportation, proper installation, electrical and water connections, and initial setup. It also details the control panel functions and operating procedures for daily use.
Additional sections cover routine cleaning, weekly and monthly maintenance such as descaling, recommended water quality, and a troubleshooting guide that helps resolve common wash‑result issues and machine malfunctions.
| Noise level | ≤70 dB (A) |
|---|---|
| Power supply | 380 V/50 Hz/3N~ or 220 V/50 Hz/1N~ |
| Operating temperature range | +5 °C to +40 °C |
| Maximum altitude | < 1000 m above sea level |
| Water temperature range | 10 °C – 60 °C |
| Maximum water hardness | 0.5 mmol/L (3.75°Clark) |
| Line flow pressure | 50 kPa – 600 kPa (≥6 bar needs reducer) |
It can be connected to either 380 V/50 Hz three‑phase or 220 V/50 Hz single‑phase power, as shown on the machine nameplate.
Descaling is recommended on a monthly basis to prevent scale buildup and maintain performance.
The water hardness should not exceed 3.75°Clark (0.5 mmol/L).
The machine operates at a noise level of 70 dB(A) or lower.
