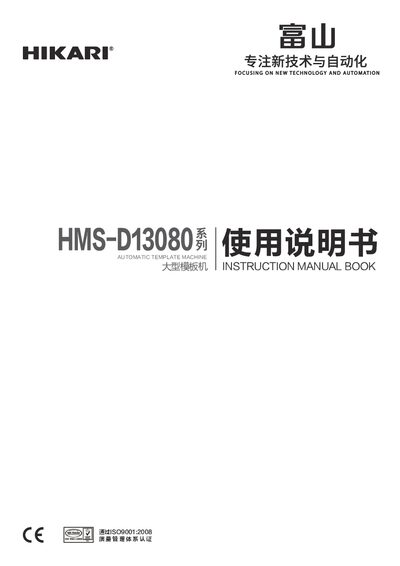

The HMS D13080 Large Template Machine User Manual provides parts lists, component details, and operating instructions for proper use and maintenance.
This manual introduces the HMS D13080 large template machine, which is certified under ISO9001:2008 quality management standards. It outlines the purpose of the equipment and gives guidance for safe operation and maintenance.
The document contains detailed parts samples, component numbers, quantities, and assembly instructions for sections such as the head left side, head cover plate, display unit, and laser control modules. It serves as a reference for technicians and operators to correctly identify and replace parts. This manual is written in Chinese.
| Laser Power | 100W |
|---|---|
| Quality Management System | ISO9001:2008 |
The head left side component uses part number 191-70.1-1455-1 with a quantity of 3.
The laser unit is rated at 100 W.
