The HMC441LM1 is a 7‑15.5 GHz GaAs PHEMT MMIC medium‑power amplifier offering 15 dB gain and up to +21.5 dBm output from a +5 V supply.

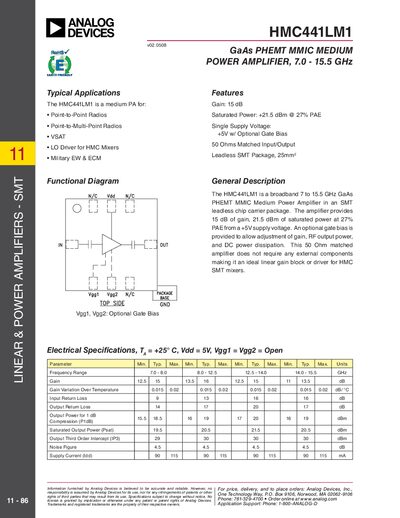

The HMC441LM1 is a broadband 7‑15.5 GHz GaAs PHEMT MMIC medium‑power amplifier in a lead‑less SMT package. It delivers 15 dB of gain, 21.5 dBm saturated output power and 27% PAE with a single +5 V supply, and includes optional gate bias for gain and power adjustment.
Typical applications include point‑to‑point radios, VSAT, LO drivers for mixers, and military EW/ECM. The device is designed for easy surface‑mount integration, requiring no external components and offering 50 Ω matched I/O. Handling, mounting and thermal guidelines are provided to ensure reliable performance.
| Gain | 15 dB |
|---|---|
| Saturated Output Power | +21.5 dBm |
| Supply Voltage | +5 V (single supply) |
It operates from a single +5 V supply, with an optional gate bias for adjustment.
The amplifier provides a typical gain of 15 dB across its frequency range.
The HMC441LM1 can deliver up to +21.5 dBm saturated output power at 27 % PAE.
Handle the package by the top with a vacuum collet or tweezers, keep it in original packaging until placement, and follow ESD precautions.
