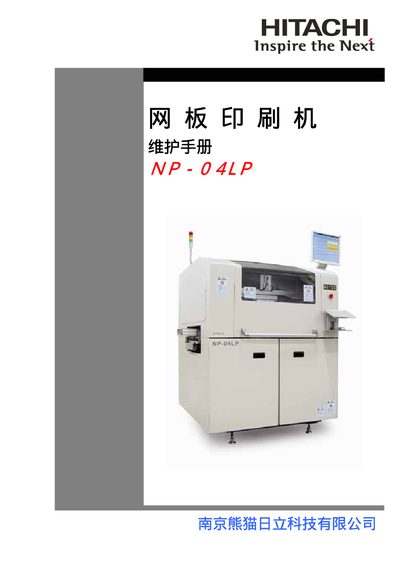

Service manual with daily and periodic inspection, maintenance procedures, parts list, and sensor layout for the Hitachi NP-04LP screen printing machine.
The manual describes the required daily checks, periodic maintenance, and component replacement for the Hitachi NP-04LP screen printing machine. It includes step‑by‑step instructions for inspecting the air source pressure, printing workbench, blade condition, and solvent levels.
Additional sections provide a detailed parts and consumables list, sensor location diagrams, and guidelines for cleaning, lubricating, and adjusting key mechanisms. The document is intended for service technicians responsible for keeping the machine in optimal operating condition. This manual is written in Chinese.
| Operating Pressure | 0.49 MPa |
|---|
The air source should be set to 0.49 MPa.
Check the blades for wear or damage and polish or replace them as needed.
Sensor locations are shown in the sensor layout diagrams at the end of the manual.
