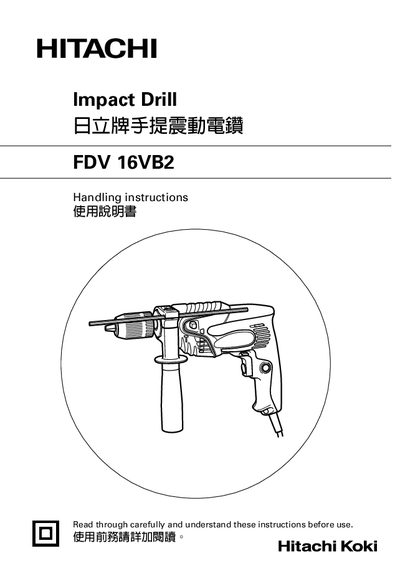

This manual is the instruction manual for Hitachi FDV 16VB2 impact drill, mainly introduces the product functions, operating methods, safety precautions, etc.
This manual provides safety and general operational precautions for the Hitachi FDV 16VB2 impact drill. It explains how to prepare the tool, select accessories, and operate the drill in both impact and rotation modes.
The document also lists technical specifications, standard accessories, recommended applications, and detailed maintenance and inspection procedures, including a parts list for service centers.
| Voltage (by areas) | 110V, 115V, 120V, 127V, 220V, 230V, 240V |
|---|---|
| Power input | 550W |
| No load speed | 0–2900/min |
| Capacity (Concrete) | 16 mm |
| Weight (without cord) | 1.6 kg |
Follow the General Operational Precautions, which include keeping the work area clean, avoiding rain, using proper protective equipment, and never carrying the tool by the cord.
Slide the change lever right for impact‑plus‑rotation mode and fully left for rotation‑only mode.
The drill can operate on 110V, 115V, 120V, 127V, 220V, 230V, or 240V depending on the region.
The tool is rated for a power input of 550 W.
