The Hikvision DS-2DC4223IW-D(S6)(B) is a 2‑MP 4‑inch 23× optical zoom infrared PTZ camera with low‑light, heating glass, and extensive network features.
The DS-2DC4223IW‑D(S6)(B) is a 2‑MP 4‑inch network PTZ camera offering 23× optical and 16× digital zoom, infrared illumination up to 100 m, and built‑in heating glass for anti‑fog operation. It supports a range of intelligent detection functions such as area intrusion, crossing line, and face detection, and provides multiple video streams with H.265/H.264/MJPEG compression.

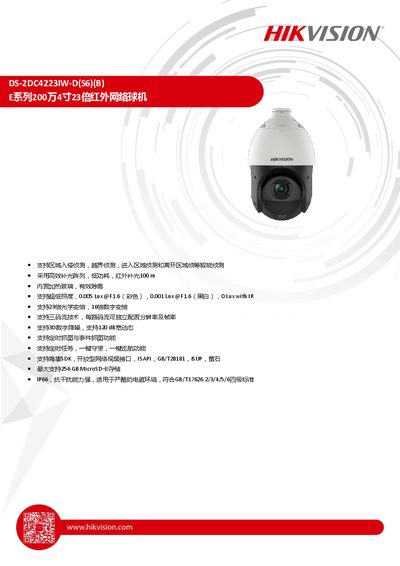

Technical specifications include a 1/2.8" progressive‑scan CMOS sensor, minimum illumination of 0.005 Lux (color) and 0.001 Lux (black‑white), IP66 protection, and operation from –30 °C to 65 °C. The camera supports up to 256 GB MicroSD storage, 300 preset points, and various mounting accessories. This manual is written in Chinese.
| Sensor type | 1/2.8" progressive scan CMOS |
|---|---|
| Minimum illumination (color) | 0.005 Lux @F1.6 |
| Minimum illumination (black‑white) | 0.001 Lux @F1.6 |
| Infrared illumination distance | 100 m |
| Optical zoom | 23× |
| Maximum video resolution | 1920 × 1080 |
| Video compression formats | H.265, H.264, MJPEG |
| Maximum power consumption | 18 W (incl. 1.6 W heating, 9 W IR) |
| Operating temperature range | -30 °C to 65 °C |
| Maximum storage | 256 GB MicroSD |
| Preset points supported | 300 |
The camera’s infrared illumination can reach up to 100 meters.
It supports up to 300 preset points.
The device can use a MicroSD card up to 256 GB.
