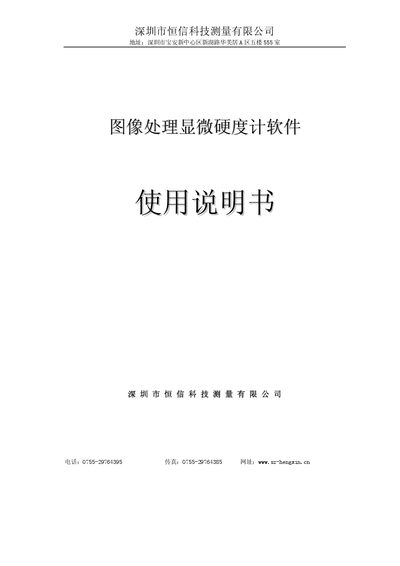

Software user manual for the Hengxin HV-1000 image‑processing microhardness tester, covering installation, operation and calibration.
The manual introduces the HV-1000 image‑processing microhardness meter, a high‑tech test instrument that combines CCD optical imaging, measurement technology and computer image processing to automate Vickers hardness testing. It details system composition, hardware requirements, and software features such as parameter input, real‑time display and database management.
Installation steps cover connecting the computer, installing the image card, encryption dongle and the software itself. Operational guidance includes system management functions, image capture tools, measurement methods (region selection, histogram, automatic and manual point‑drawing), and calibration procedures to ensure accurate hardness values. This manual is written in Chinese.
| Test force range | 0.01–1 kgf |
|---|---|
| Minimum detection unit | 0.025 µm |
| Minimum CPU requirement | 1 GHz or higher |
| Minimum RAM requirement | 128 MB or higher |
The software requires a CPU with a frequency of 1 GHz or higher.
Run the program SoftDogInstdrv.exe and follow the on‑screen prompts to complete the driver installation.
Select the CCD calibration menu, place a standard optical glass scale on the workbench, focus the camera, then pick two points on the scale to let the system compute the distance.
