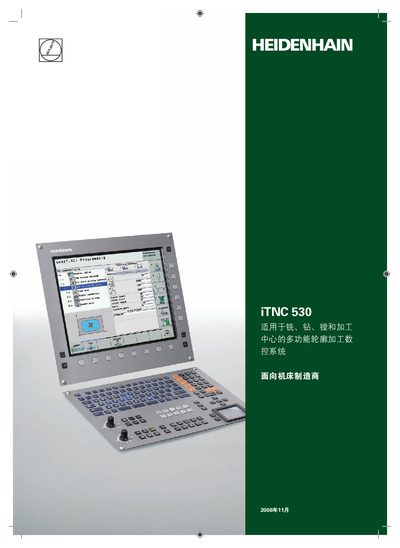

The Heidenhain iTNC 530 CNC system manual provides specifications, installation, operation, and service information for the multi‑axis control system.
The iTNC 530 is a versatile CNC controller for milling, drilling, boring and machining centers, capable of controlling up to 13 axes and two spindles. It features a TFT color flat‑panel display (BF 150), a hard drive of up to 26 GB, and runs on Windows XP with optional dual‑processor configurations. The system supports Heidenhain dialogue programming, ISO formats, and advanced functions such as high‑speed 3‑D machining and automatic cutting‑data calculation.
The manual details the machine‑tool interface, built‑in PLC with up to 56 digital inputs and 31 digital outputs, Ethernet, USB and RS‑232/RS‑422 communications, as well as a wide range of accessories like electronic handwheels, probes, and optional modules. Service and support information, including contact numbers and email addresses for technical assistance, are provided at the end of the document. This manual is written in Chinese.
| Maximum axes | 13 |
|---|---|
| Spindle count | 2 |
| Maximum spindle speed | 60 000 min⁻¹ |
| Hard‑drive capacity | ≈26 GB |
| RAM | 512 KB |
| Display | BF 150 color flat‑panel TFT LCD |
| PLC digital inputs | 56 (24 V) |
| PLC digital outputs | 31 (24 V) |
The iTNC 530 can control up to 13 axes.
The controller runs on Windows XP, with optional dual‑processor versions.
Technical support can be reached by phone (+49 8669 31‑3101) or email [email protected] for NC programming assistance.
